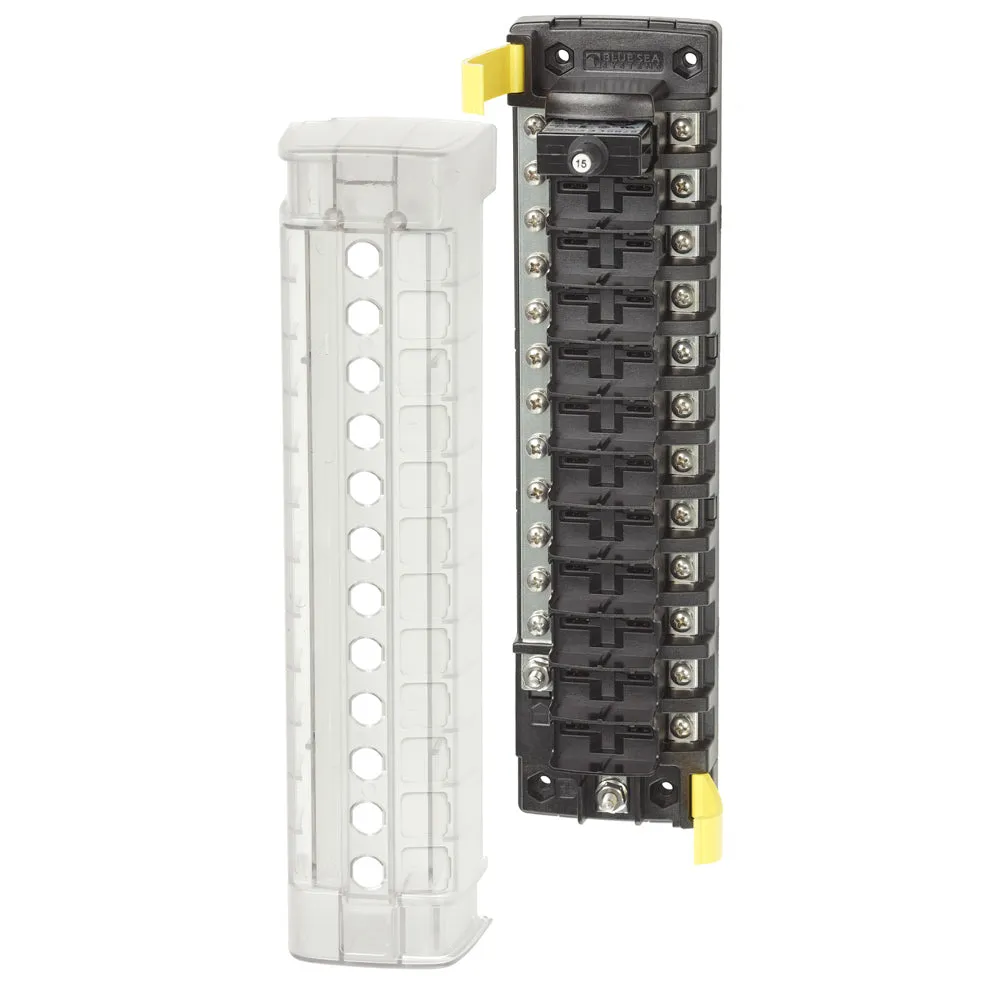

ST CLB Circuit Breaker Block - 12 Position w/Negative Bus
Features
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
Specifications:
Circuits:t12
Maximum Amperage:t100A (per block) 32A (per circuit)
Maximum Voltage:t32V DC
Mounting:t#8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source:tCommon SourceMinimum Operating Temperature:t-10° C
Maximum Operating Temperature:t60° C
Mounting Centers:t10.13"(257.3 mm)
Screw Terminal Type:t#8-32 Screws with Captive Star Lock Washer
Height:t6.69"(169.93 mm)
Weight:t1.50lb (0.68 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .
Specifications:
- Amperage: 100/32a
- Box Dimensions: 3"H x 5"W x 15"L WT: 1.5 lbs
- UPC: 632085050542
